When a South Island workshop looked to expand their capability and bring Certificate of Fitness (COF) testing in-house, they needed an upgrade that would increase capacity and improve workflow — all while keeping day-to-day operations moving.
EquipSpecs delivered a combined solution: a nine-metre prefabricated steel inspection pit extension, a Ryme Worldwide FRU 4 Roller Brake Tester with lifting bed load simulation, and new LED pit lighting. Together, these upgrades transformed an existing bay into a fully compliant, high-capacity brake-testing lane.
Planning an Upgrade That Delivers Value
In developing the upgrade path, the priority was clear: increase productivity without the cost or downtime of constructing a new bay. Extending the existing pit offered the most practical solution, allowing the customer to maximise their footprint and achieve the required capacity increase.
That strategic approach was shaped by EquipSpecs Head of Service, Wayne Hundley, whose two decades of industry experience have made him a go-to technician for complex upgrades across New Zealand and Australia. “The goal was to increase productivity and provide a more rounded service to their customers,” Wayne explains. “Extending the existing pit meant a faster turnaround, lower cost, and much greater utilisation of under-used floor space.”
With the brake tester installation requiring civil works, incorporating the Ryme Worldwide FRU 4 into the new pit extension meant all structural work could be completed in a single, controlled stage. This kept the existing bays operating and ensured the upgrade improved both workflow and overall workshop efficiency.
Engineering a Seamless Integration
Every upgrade of this scale demands accuracy — not just in the pit extension, but in co-ordinating the civil works, brake tester installation, and final workshop layout. With hundreds of installations behind him across multiple brands and workshop environments, Wayne’s hands-on involvement ensured each component came together cleanly and without disruption.
As Wayne explains, achieving that level of consistency starts with building on the workshop’s existing design:
“We emulated the original pit design. Customising the extension to match the existing pit profiles for a seamless look.”
Using a prefabricated pit extension meant most fabrication, finishing, and layout work was completed off-site, allowing the on-site phase to run with tight control and minimal downtime. With experienced technicians managing each stage — from excavation through to alignment and installation — the entire upgrade progressed with precision and consistency.
The result is a fully integrated bay where every element, from the new pit section to the Ryme Worldwide FRU 4 roller brake tester, looks and performs as though it has always been part of the workshop.
Installation in Action

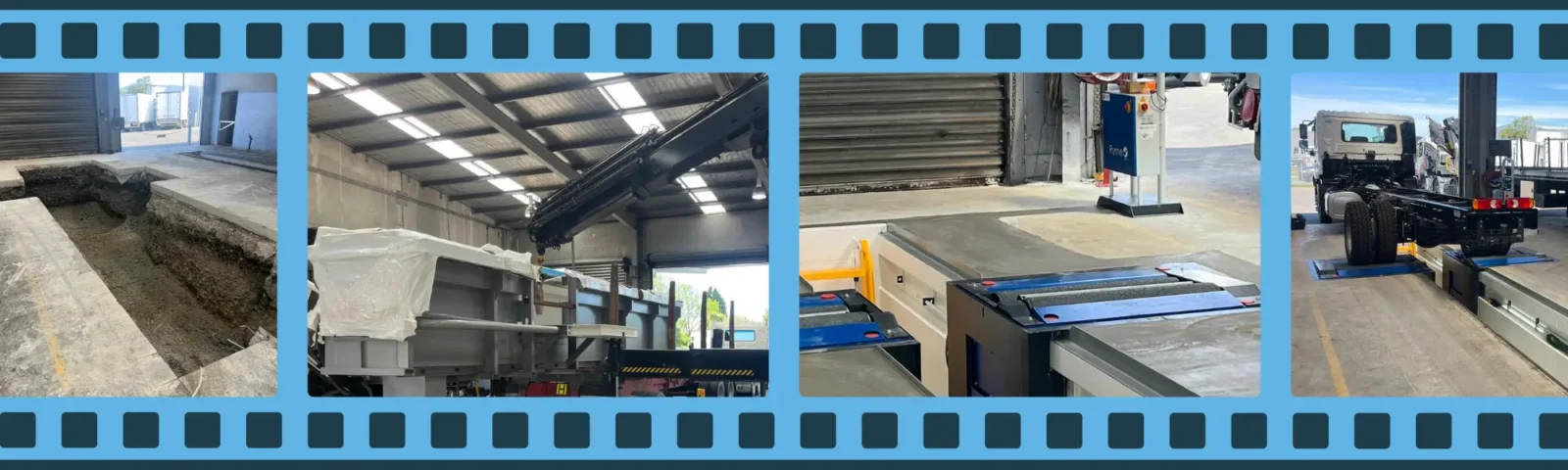

The installation involved several co-ordinated stages designed to keep downtime low and accuracy high. Key activities included:

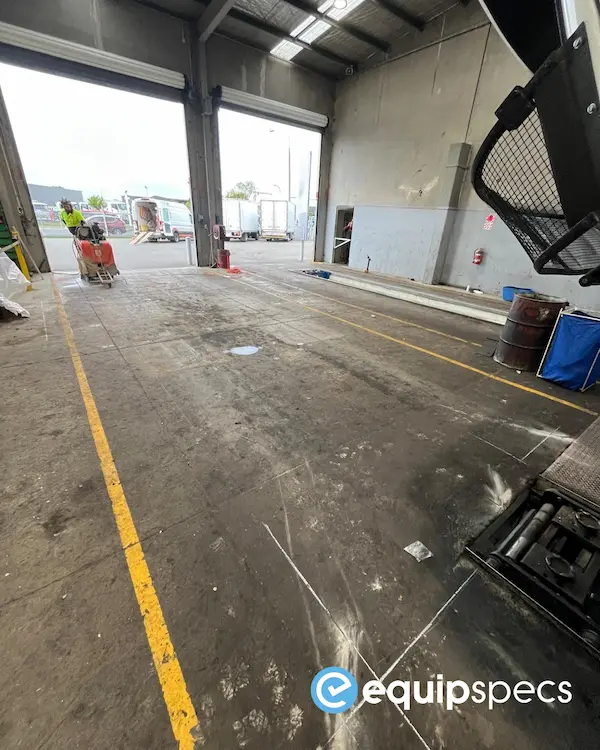

- Concrete cutting and excavation to prepare for the nine-metre pit extension

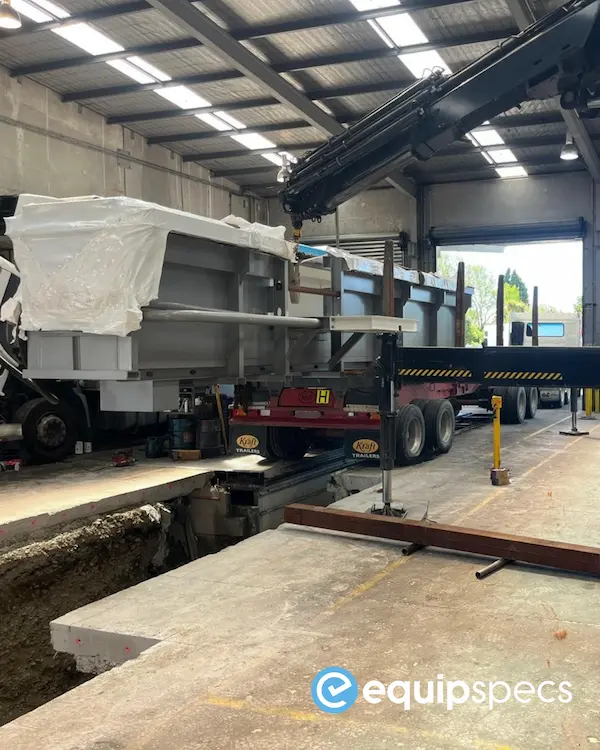

- Craning the prefabricated steel pit section into position and completing structural alignment
- Reinstating the workshop floor and tying the new works into the existing bay
- Installing the Ryme Worldwide FRU 4 Roller Brake Tester with lifting bed load simulation

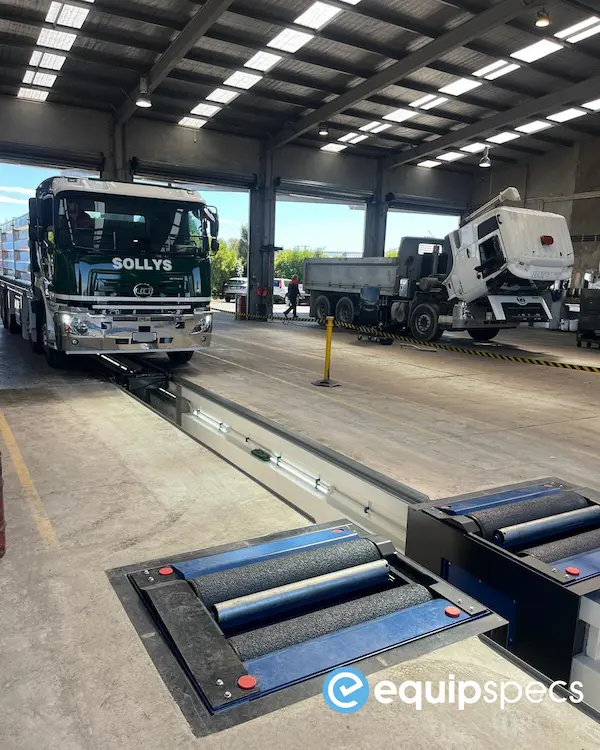

- Integrating low-voltage LED tube lighting, selected for its slimline profile, durability, and improved pit visibility
Each part of the upgrade was carried out by EquipSpecs’ own technicians, ensuring continuity, quality control, and compliance from start to finish.
According to Wayne, the most technically demanding aspect was maintaining accuracy and detail across every stage — something that comes from experience and a steady hand. With more than 20 years in heavy-vehicle workshop environments, that level of discipline is second nature.
Results and Benefits
The completed upgrade now allows the workshop to carry out COF testing on site, increasing throughput and giving customers a more comprehensive service offering. It also demonstrates how a pit extension can deliver meaningful capacity gains without the downtime or cost of constructing a new bay.
As Wayne explains:
“Pit extensions are a fast, effective way to improve workshop productivity without extended downtime. If you’re considering other options because you think you can’t afford the stoppage, a pit extension can be the smarter alternative.”
Delivering Confidence, Every Time
From the first cut to final calibration, this project reflects EquipSpecs’ approach: accurate planning, proven on-site expertise, and dependable aftersales support.
As Wayne sums up:
“We deliver on time, on target, and on budget.”
📍 Project Scope
- 9 m prefabricated steel inspection pit extension
- Ryme Worldwide FRU 4 Roller Brake Tester with Lifting Bed Load Simulation
- Low-voltage LED pit lighting system
- Full installation, alignment, and calibration by EquipSpecs technicians
EquipSpecs Ltd designs, supplies, and installs engineered workshop equipment and turnkey solutions across New Zealand, Australia, and the Pacific.
Our team delivers roller brake testers, prefabricated steel pits, automatic pit covers, and complete workshop fit-outs — each tailored for safety, compliance, and long-term performance.
